MI-VAL [59-64]

[59] 48 Presa Diretta



[60] 48 Presa Diretta Normale

[60] 48 Presa Diretta Lusso

[60] 48 Standard/48 (Finland)



[64] 48 Automatic (Holland)



Listing incomplete.

Fact errors exist.

MI-VAL [59-64]

[67] 48 Presa Diretta

[67] 48 Frizione Automatica

[67] 48 Gran Turismo Lusso

[67] 48 Sport

[67] 50 Sport Corsa

[67] 50 Competizione 4M

[67] 50 Cross Country 4M





MI-VAL

• 48 Presa Diretta Normale

• 48 Presa Diretta Lusso

• 48 Frizione Automatica

• 48 Sport

• 48 Super Sport .. 3 Marce

• 48 Gran Turismo Lusso

• 50 Competizione 4M

• 50 Cross Country 4M











Italy main.

• Holland main.





A-Z countries:

Italy.



• MI-VAL main.



N1





Mi-val  48 c.c. (Presa Diretta) Bj.59

Motor: Mi-Val




N2

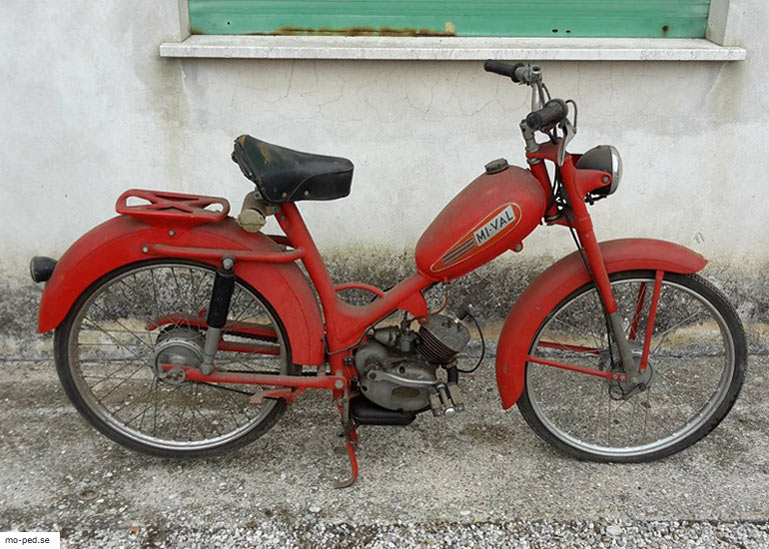

Mi-val Presa Diretta normale  Bj.60

Motor: Mi-Val

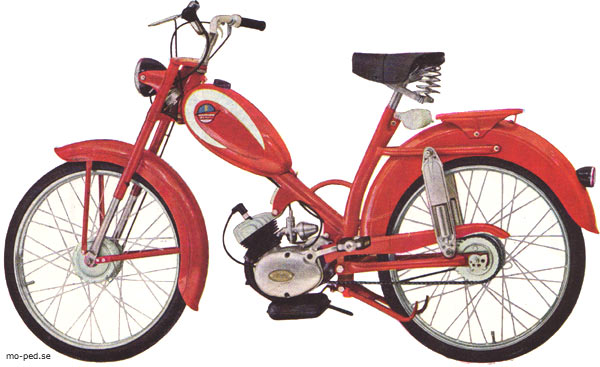

Mi-val Presa Diretta lusso Bj.60

Motor: Mi-Val











N3





Mi-Val Standard/48 in Finland 1960







Mi-val ciclomotore Presa Diretta

Motor: Mi-Val









N4c





Mi-Val in Holland 1964

Automatic - Mival motor, 1 gear.





Nederlandse bromfiets

markt 1964











Mi-Val motore per ciclomotore

48 cc. 2 tempi - 3 marca




N6h





Mi-Val 48 Presa Diretta   Bj.67





Mi-Val 48 Gran Turismo Lusso   Bj.67

• Mi-Val 48 Presa Diretta














M1a

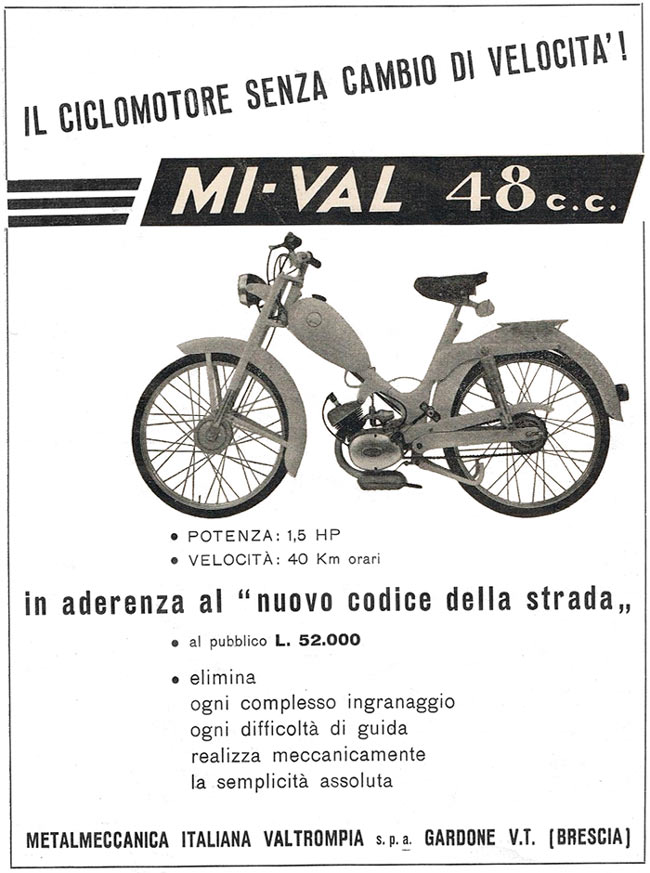

 1959   MI-VAL 48 c.c.   Motociclismo 20 Giugno 1959





Presa Diretta



IL

CICLOMOTORE

SENZA

CAMBIO

DI

VELOCITA

!







M2b
 1960   il ciclomotore senza cambio di velocità


MI-VAL

CICLOMOTORE 48 cc. PRESA DIRETTA - normale

si guida senza patente

METALMECCANICA ITALIANA VALTROMPIA s. p. a. - Gardone Valtrompia (Brescia - Italia)




CARATTERISTICHE

Cilindrata: Cm3 48

Rapporto di compressione: 1/6,5

Potenza: CV 1,5



CARACTÉRISTIQUES

Cylindre : 48 cm3

Rapport de compression : 1/6,5

Puissance : HP 1,5



PECULIARITIES

Displacement: 48 cm3

Pressure ratio: 1 /6,5

Power: 1,5 HP







Consumo: Km. 70 con un litro di miscela

Pendenze superabili: 10%

Velocità: 40 Km. orari





Consommation : Km. 70 avec un litre de mélange

Pentes surmontables : 10%

Vitesse : 40 Km./heure





Fuel consumption: 70 Km. with 1 litre of mixture

Superable slope : 10%

Speed : 40 Km/hour










M2d
 1960   il ciclomotore senza cambio di velocità.


MI-VAL

CICLOMOTORE 48 cc. PRESA DIRETTA - lusso

si guida senza patente

METALMECCANICA ITALIANA VALTROMPIA s. p. a. - Gardone Valtrompia (Brescia - Italia)





CARATTERISTICHE

Cilindrata: Cm3 48

Rapporto di compressione: 1/6,5

Potenza: CV 1,5



CARACTÉRISTIQUES

Cylindre : 48 cm3

Rapport de compression : 1/6,5

Puissance : HP 1,5



PECULIARITIES

Displacement: 48 cm3

Pressure ratio: 1/6,5

Power: 1,5 HP







Consumo: Km. 70 con un litro di miscela

Pendenze superabili: 10%

Velocità: 40 Km. orari





Consommation: Km. 70 avec un litre de mélange

Pentes surmontables: 10%

Vitesse: 40 Km./heure





Fuel consumption: 70 Km. with 1 litre of mixture

Superable slope : 10%

Speed : 40 Km/hour





M3c

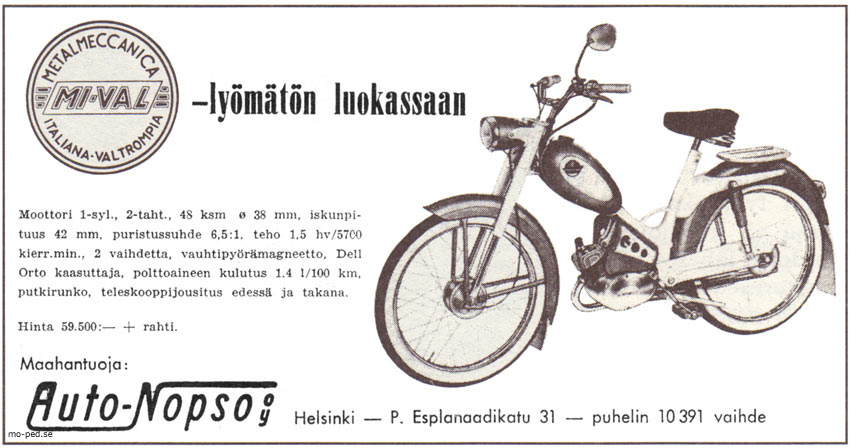

 1960   MI VAL [Importer: Konetuote Oy Helsinki.] [Auto-Nopso Oy] (I) Standard/48 -60    [Tekniikan Maailma 6/1960] ● [Back to Finland.]



M3d
 196?   MI-VAL ciclomotore Presa Diretta





M4a
Bromfiets, Brommers, Bakbrommers - Carrier, Fiets. Bromfiets, Brommers, Bakbrommers - Carrier, Fiets.
 MIVAL N.V. H.M.W. (Hulp Motorenwerk Weesp), Nederhorst den Berg, Amsterdam. ^ back to NL reg.

 BENELLI MIVAL  ● PARILLA - Importeur Holland: N.V. H.M.W., Nederhorst den Berg, Amsterdam.
 Metalimeccanica Italiana VAL Trompia uit Gardone, Val Trompia, Brescia.

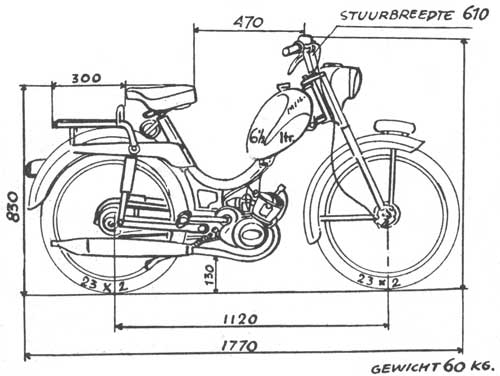

 1964 - Mi-Val,










TECHNISCHE GEGEVENS

MOTOR: Mival - ééncilinder - tweetakt - cilinderinhoud 49 cc - boring 38 mm - slag 42 mm maximum toerental 6000 omwentelingen per minuut - compressieverhouding 6,95 : 1 - omkeerspoeling - primaire transmissie door middel van tandwielen - secundaire transmissie door middel van een rollenketting - geen versnellingen - automatische koppeling - smering primaire transmissie met 35 ce olie SAE 30 Dansi vliegwielmagneetontsteking met 6 V 18 W lichtspoel - voorontsteking 2,1 mm - onderbrekerafstand 0,4 mm - bougie Marelli CW 225 A of Bosch 225 T 1 - elektrodenafstand 0,4 mm - geforceerde koeling - Dell'Orto carburateur type T 7-9-D - hoofdsproeier 52 - naaldstand 2e inkeping van boven - aanzuiggeruisdemper - mengverhouding brandstof 1 : 20 met olie SAE 50.







1964



Models 1964.



MIVAL N.V. "H.M.W.-, Nederhorst den Berg.



Automatic - Mival [3] motor, 1 gear.



[1] Viertaktmotor (kopkleppen)

[2] Ook leverbaar met drie versnellingen

[3] Met automatische koppeling

[4] Met automatische versnellingen





RIJWIELGEDEELTE:

Buisframe - losse tank met een inhoud van 6 1/2 liter, waarvan 1/2 liter reserve - telescopische voorwielvering - zweefarm achtervering - volnaaf trommelremmen in vooren achterwiel - verstelbaar zadel - Aprilia koplamp dimschakelaar op stuur - eenzijdig afgeschermde ketting - gereedschaptasje onder zadel verstelbaar stuur - bagagedrager - pomp middenbok - bel - motorrijwielventielen toelaatbare belasting 120 kg - kleuren grijs en crème.



PRIJS: f 535,- exclusief snelheidsmeter.

IMPORTEUR: N.V. "H.M.W" te Nederhorst den Berg.


M6c     MI-VAL
         [Motor guide.]

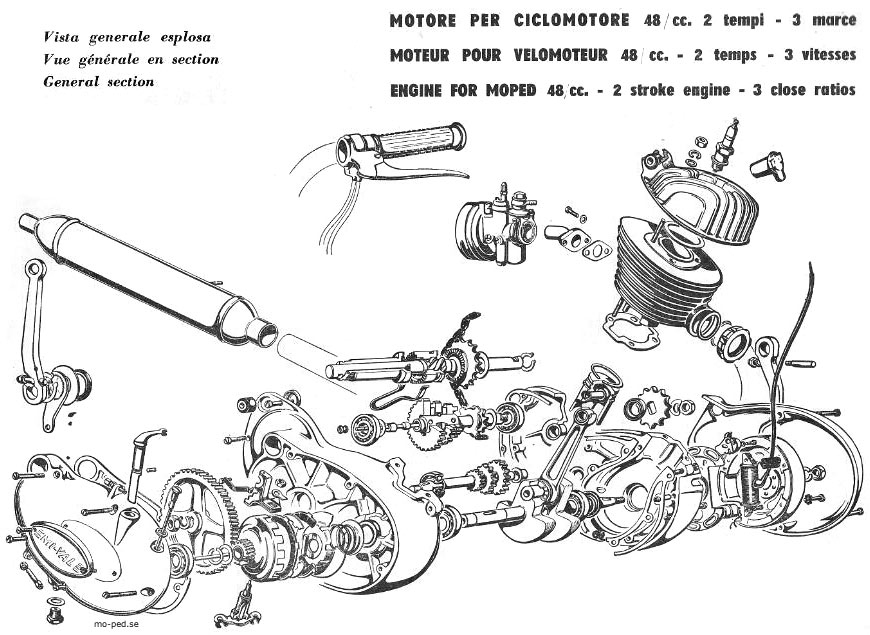

Motore per ciclomotore 48 cc. 2 tempi - 3 marca



Moped brands equipped with MI-VAL engines 2 or 3 gears.



Denmark: Skylon MI-VAL Bj.60




M6h
 1967

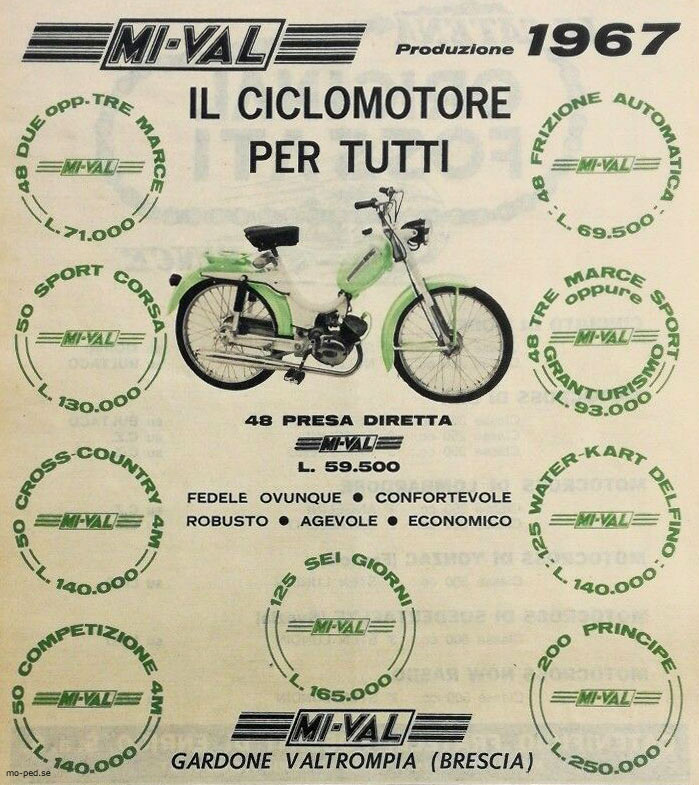

MI-VAL Produzinone 1967





48 Presa Diretta

• 48 Frizione Automatica

• 48 Gran Turismo Lusso

• 48 Sport

• 50 Sport Corsa

• 50 Competizione 4M

• 50 Cross Country 4M




M6i
 1967

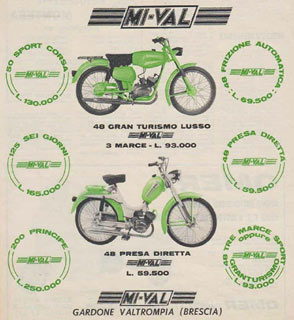

MI-VAL



48 Presa Diretta

• 48 Frizione Automatica

48 Gran Turismo Lusso

• 48 Sport 3 marce

• 50 Sport Corsa
