 REX-MOTOREN-WERK E. u. K. BAGUSAT MÜNCHEN 25  REX mopeds Rex-Moped-Verkauf GmbH., Braunschweig.




Mopeds equipped with REX motoren

in Denmark.

Lion, FDB, København.

Olympic, Crescent & Olympic Cykler, København.

Power, Poul Jørgensen & Co., København.

Presto, Piil & Brokholm, Slagelse.

Rex, Dansk Cykle Industri A/S, Køpenhavn.

● Trent,





1951

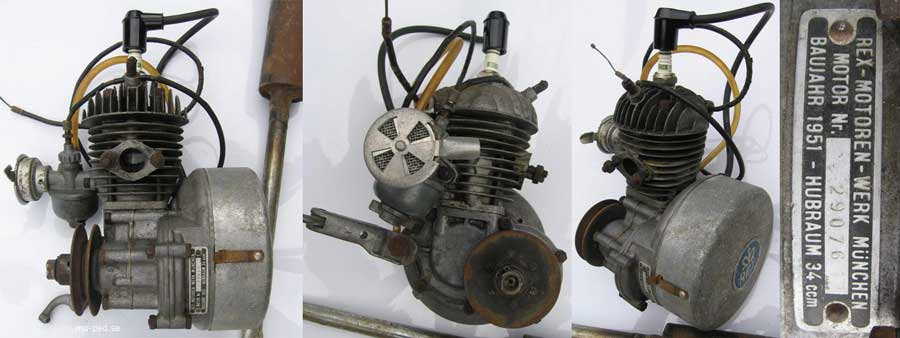

 1951   REX Fahrradhilfsmotor  FM 34



1952
 1952   REX Fahrradmotor  FM 40 [FM 40.]









50-1 L
 1954   REX FM 50-1 L








UK
 1957   Phillips Gadabout - UK.














THE ENGINE UNIT -

powerful, compact, reliable, quiet (even the air intake is hooded to reduce noise) and practically fool-proof, is easily accessible and at the same time positioned so that there is practically no risk clothing getting soiled by contact with it. The driver is positive to the rear wheel through a two-speed gear-box .

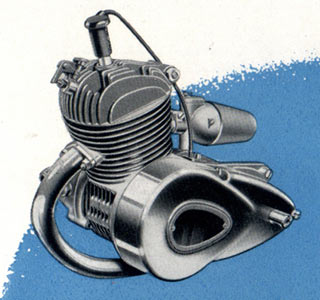

THE ENGINE UNIT

nestles into the frame in such a way that it is easily accessible and at the same time well protected against

dirt and knocks. Notice the strangler lever on the carburetter, to ensure easy starting, and the funnel to reduce noise from

the air intake.











TWO SPEED GEARS -

provide impressive acceleration an hill climbing performance in bottom gear, and a high, economical, and quiet cruising speed in top.

The gear change is operated without taking your hands of the handlebar, and the linkage of the clutch and change makes it impossible to "crash" or damage the gear.

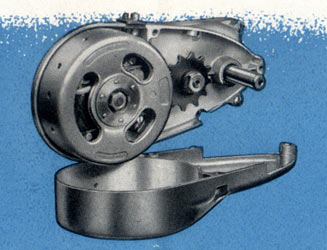

THE FLYWHEEL MAGNETO GENERATOR

(shown here with cover removed) gives a power of 17 watts at 6 volt - ample for the powerful 15/15 watt headlamp and electric horn as well as for the ignition. The flywheel incorporates strong permanent magnets which, properly treated, will never lose their magnetic power.





PHILLIPS CYCLES LIMITED · SMETHWICK · BIRMINGHAM 40




 PILOT   (REX) FM 50 (1 gear) and Pilot 504 (2 gears).

 10 most common engines in SWEDEN 1954: Autoped, Express, HMW, Husqvarna, JLO, Pilot (Rex), Sachs, Victoria and Zündapp.





 1954

Swedish mopeds equipped with Pilot F 50 or Pilot 504 engine.



Jagaren A.-B Björk & Co, Stockholm. 1954 (1-växl).

Kroon AB Ch. Kroon, Vansbro. 1954 (1-växl).

Maraton (Pilot FM 50) AB J. Benson, Malmö. - J. Benson Försäljnings AB, Eskilstuna. 1959

● Monark (Pilot 504) monarpeden M 56 F - 1956  AB Cykelfabriken MONARK - Varberg.

● Monark (Pilot 504) monarpeden M 56 - 1956

● Monark (Pilot FM 50) monarpeden M 57 - 1956.

● Monark (Pilot FM 50) 1-växl. monarpeden M 50 - 1956

● Monark (Pilot 504) 2-växl. monarpeden M 61 - 1956

Monark pojkmopeden 1956 (2-växl).

Stanley, AB Tobo Bruk, Tobo (1-växl).

Örnen (Pilot FM 50.1 L?) Flyer mod.90. AB John Hedbergs Maskinaffär, Malmö (AC tändstift).



Note: 10 maj 2017 - INTE KLART!





      Pilot motorer.





          PILOT FM 50.1 L (49 cc, 1 gear.)







PILOT FM 504 (50cc. 2 gear.)
